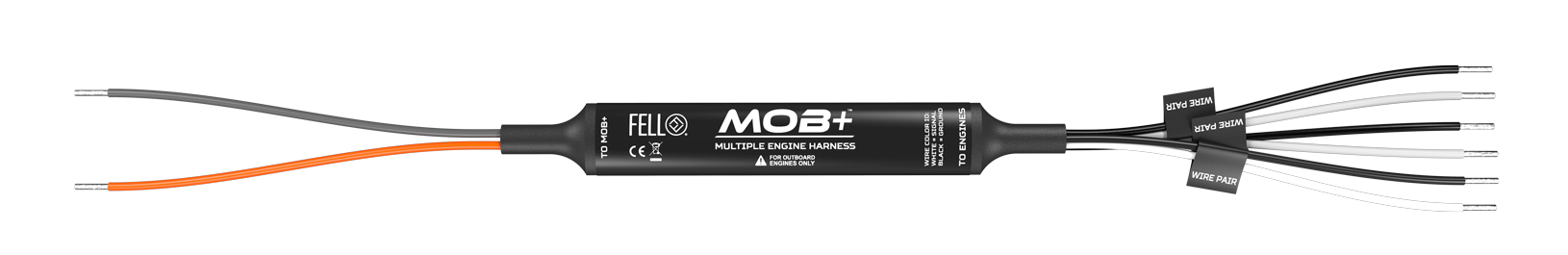

MOB+ Multiple Engine Harness (MOB+ MEH)
This product is designed to be used in conjunction with the MOB+ xHUB to stop multiple engines simultaneously for multiple outboard installations. The MOB+ xHUB should be installed prior to installation of this Multiple Engine Harness.
Part name:MOB+ Multiple Engine Harness
P/N:(F-A/N): 72.380.401
Availability:FELL Marine dealersandbuy.fellmarine.com
*Multiple Engine Harness kit includes User Manual, please read this carefully before installing this product.
IMPORTANT
- WHITE wire on MOB+ MEH is signal wire; each engines signal wire must be connected to the WHITE wire on the MOB+ MEH.
- BLACK wire on the MOB+ MEH is GND wire; each engines GND wire must be connected to the BLACK wire on the MOB+ MEH.
- Connect WHITE and BLACK wires in pairs as bundled on the MEH kit.
CAUTION
For multiple outboard installations, the black (-) battery cable of each engines starter motor ground circuit, MUST BE connected to each other by a common circuit (cable) capable of carrying the starting current of each engines starter motor. (i.e. A locally obtained battery cable connected between the negative (-) terminal of each outboards cranking battery.)
Keywords:
Multiple engines, Yamaha multiple engines, splitter, harness, diode kit, multiple wires, multiple engine harness, meh,
Comments
1 comment
I’m not sure exactly what multi engine harness parts I need to order for my boat.
I have 1 main engine (200 hp merc) and a kicker engine (15 hp merc).
What pats do I need to order ?
